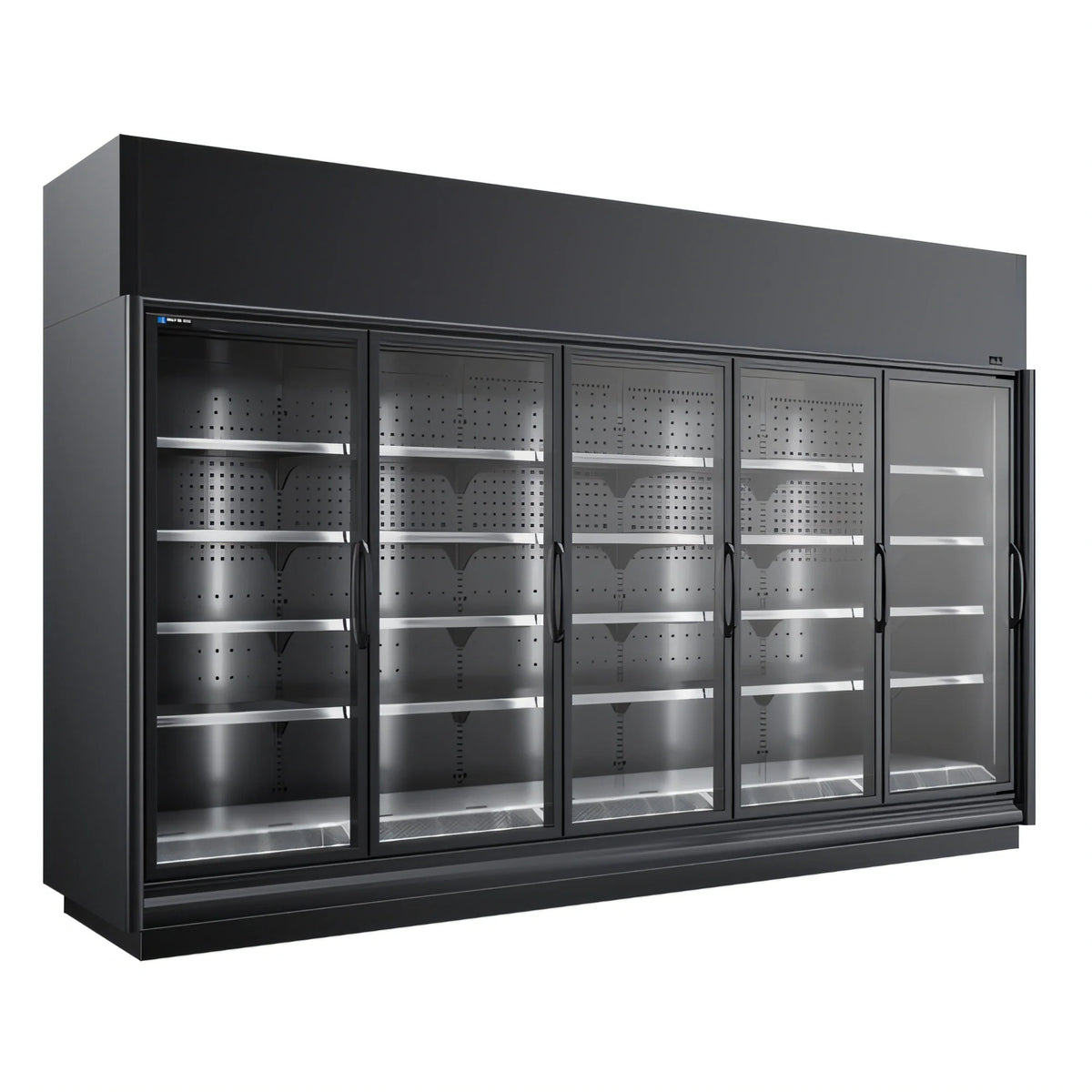

Master-Bilt Products BEL-5-30SC Endless Configurable Glass Door Merchandisers

Endless 5-Door Low-Temperature Merchandiser – Self-Contained

Built for high-volume frozen food sales, the Master-Bilt Endless BEL-5-30SC delivers maximum product visibility, powerful low-temperature performance and the flexibility to grow with your store layout.

Why You’ll Love It

• Huge merchandising zone – five 30″ wide doors with the industry’s tallest interior case height put 100 % of the 133.7 cu. ft. pack-out right in shoppers’ sight lines.
• 25 heavy-duty shelves (135 lb rating each) with price-tag molding and product stops keep inventory organized and safe.
• Energy-saving design – front air screen, EC fan motors and full-length LED lighting reduce runtime and utility costs.
• Factory-installed semi-self-contained refrigeration ships ready to hard-wire; only the main power hook-up is required.
• Quiet operation – bottom-mounted MSLD020EB-ENC condensing unit is wrapped in sound-dampening fiberglass matting.
• Modular “Endless” concept lets you join additional Endless coolers or freezers for a seamless wall-to-wall line-up.
• Made in the USA and certified cULus & UL EPH Classified for NSF-7 food-safe performance.

Built to Perform in Retail Spaces

• 2 ½″ foamed-in-place walls & zero-ODP insulation (R-factor 20.0).
• Painted, textured galvanized-steel interior & exterior for long-term durability.
• Cam-locked back, top and bottom panels add structural rigidity.
• Self-closing Thermoseal® glass doors with adjustable torsion hinges; optional factory anti-fog film available.
• Field-installed 24-ga. steel shroud (ships loose) adds 20″ to overall height and conceals refrigeration components.
• Narrow 40⅜″ depth and shallow bumpers minimize floor-space intrusion.
• Designed to fit through a standard 80″ doorway once skid runner is removed.

Technical Specifications

Perfect For

• Supermarkets, c-stores & club stores
• Ice-cream & frozen dessert merchandising
• Bulk frozen entrées, meat & seafood displays

* Height shown does not include the 20″ steel top shroud supplied loose with the unit.
Ends are sold separately; a 2 ½″ insulated partition is required between cooler and freezer modules in multi-case line-ups.
