Ceiling Lay-In Plaque Diffuser 24X24 with Insulation - DPL
Ceiling Lay-In Plaque Diffuser 24X24 with Insulation - DPL (Old DPL)
Click here for Performance Tables (CFMs, etc)

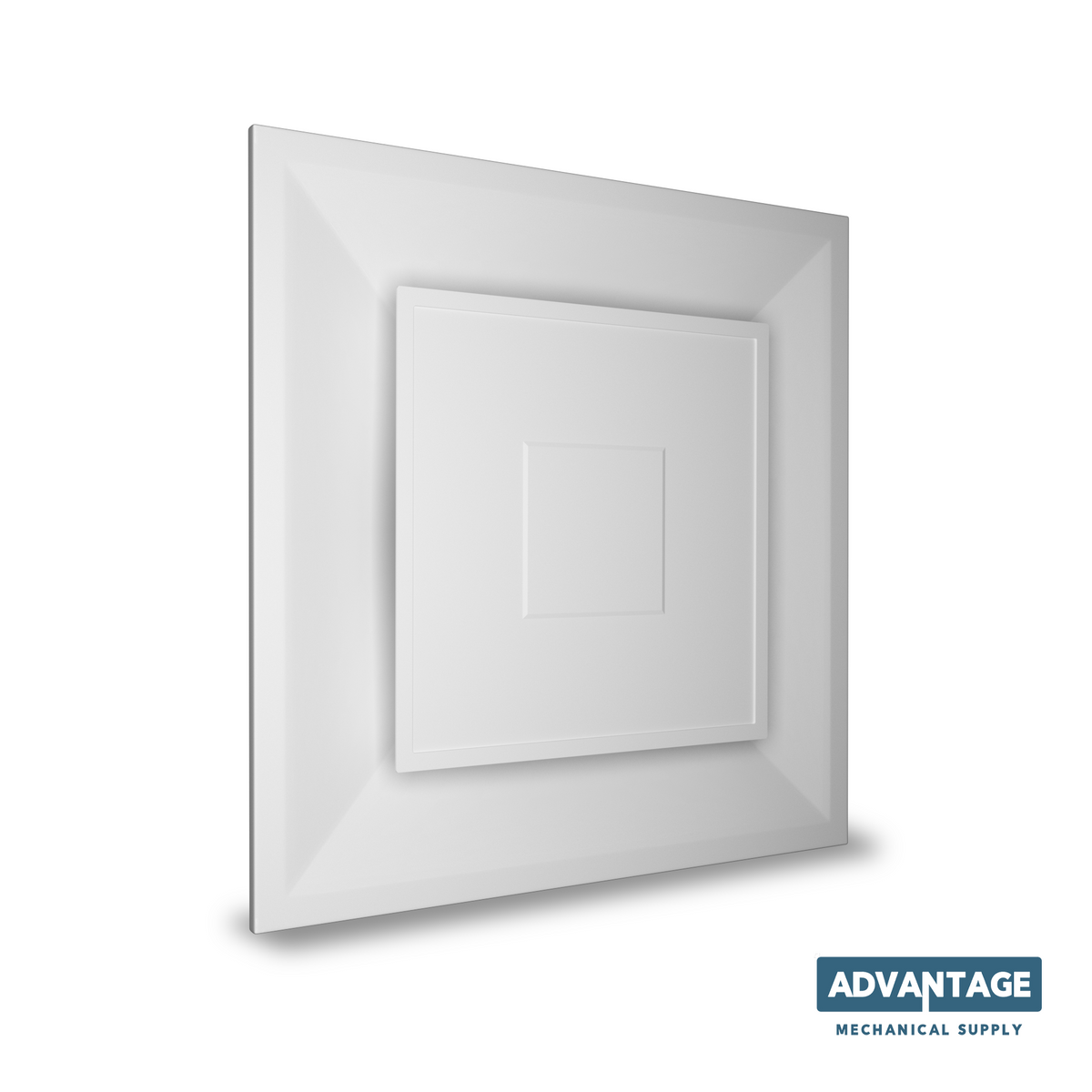

The DPL modular diffuser is designed for seamless integration into ceiling lay-in grid systems, offering high-efficiency airflow and superior durability. Its 24” x 24” design includes a high-performance insulated distribution box and a round neck for easy, flexible duct connection. The addition of an air shock plate ensures optimized airflow and performance.
Key Features:
- Modular Design: 24” x 24” diffuser perfectly fits standard ceiling lay-in grids for a clean, professional look.

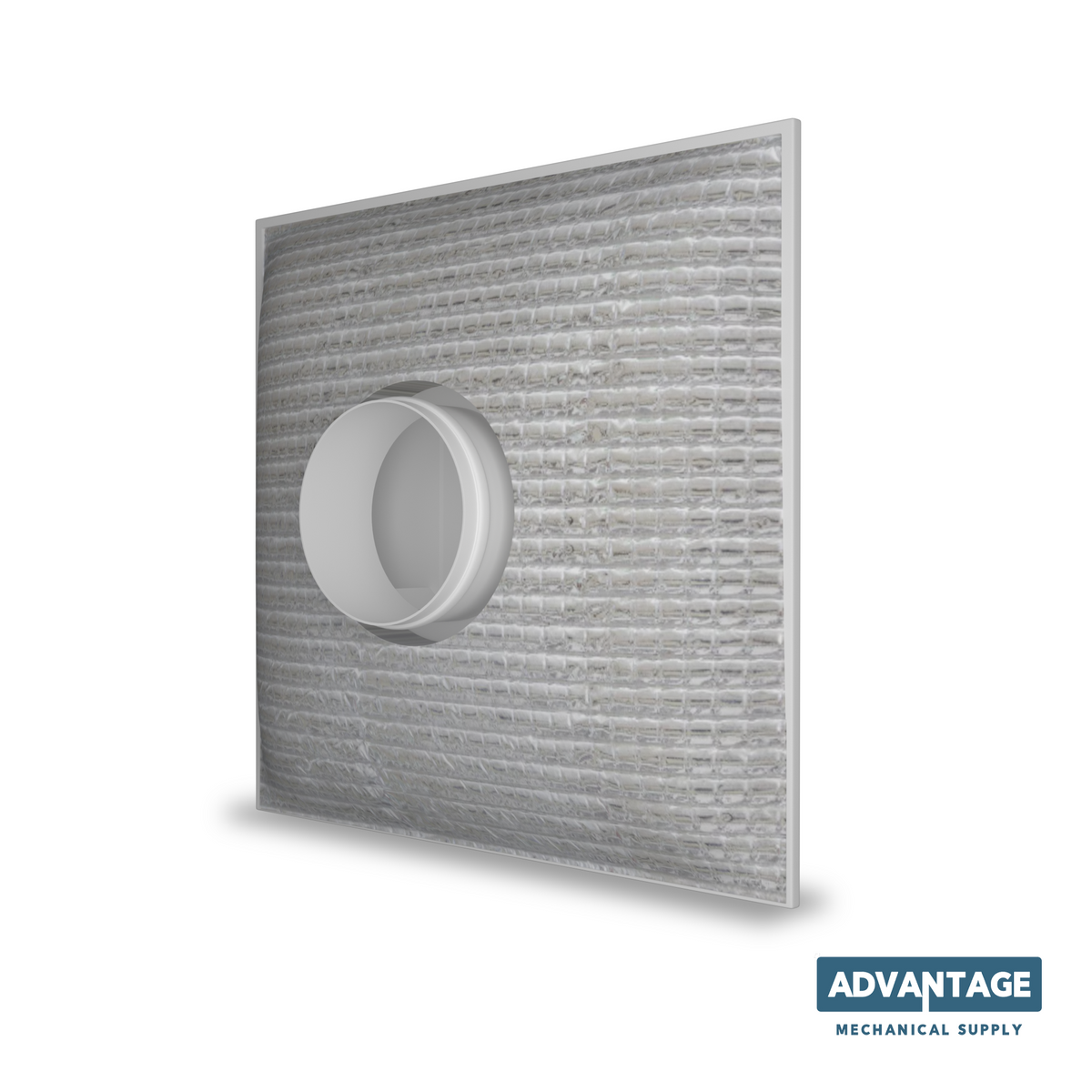

- High-Efficiency Insulated Box: Insulated for maximum thermal efficiency, reducing energy loss and ensuring consistent performance.
- Air Shock Plate: Improves airflow uniformity and performance, making it ideal for demanding HVAC applications.
- Durable Materials: Constructed with a 26-gauge reinforced steel adapter box, an 18-gauge shock plate, and rolled necks made from galvanized 26-gauge steel. Fiberglass insulation is 1-1/2” thick with an R-value of 4.2 for enhanced thermal performance.
- Round Neck Connection: Facilitates a secure and efficient connection to flexible ducts for streamlined installation.
Finish Options: Available finishes include Standard White, Metallic Gray, and Matte Black. Steel and aluminum options are available.
Applications: Ideal for commercial and residential HVAC systems, the DPL diffuser is perfect for offices, retail spaces, and other environments requiring efficient air distribution and easy ceiling integration.
Availability: Availability varies by neck size, material, and finish. Select White steel configurations are generally stocked. Non-stock White steel sizes, all Aluminum configurations, and Metallic Gray or Matte Black finishes are made to order. Select all options to view availability for your exact configuration. Made-to-order configurations have an estimated production lead time of 3 to 4 weeks.
No substitutions without approval: If your selected configuration is unavailable, we may contact you with a compatible alternative. We will not substitute the neck size, material, or finish without your approval.
Upgrade your HVAC system with the DPL modular diffuser, delivering precision, efficiency, and durability in an elegant design.
